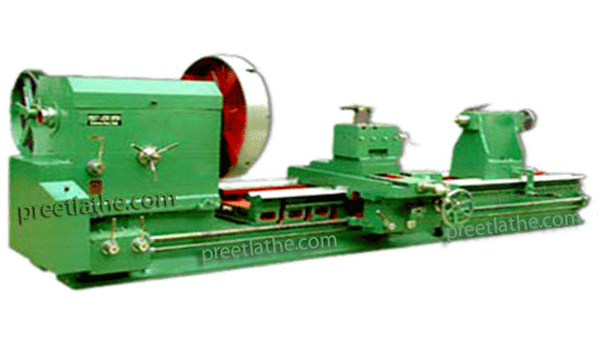

Heavy Duty Lathe Machine
Preet Lathe™ Udyog is into Heavy Duty Lathe, Extra Heavy Duty Lathe Machine & Roll Turning Lathe which are personalized to take up hefty tons & to create finest results. P.M.T. Brand Heavy Duty Lathe Machine & Extra Heavy Duty Lathe Machine is manufactured on the basis of Innovative Mechanism. Heavy Duty Lathe Machine in Batala is manufactured and is audited by the Excellence Experts to leave a bench-mark.
Heavy Duty Lathe Machines are available in both All Geared Lathe & Cone Pulley Lathe Models with Semi Norton & Full Norton Gear Box.
| Specifications | HEAVY DUTY All GEARED LATHE Machine | |||||
| Description | A | B | C | D | E | F |
| Bed Length | 6' | 8' | 12' | 16' | 20' | 24' |
| Center Height | 12" | 16" | 24" | 24" | 26" | 26" |
| Admit Between Centers | 38" | 50" | 70" | 120" | 165" | 213" |
| Swing Over Bed DIA | 24" | 31" | 47" | 47" | 51" | 51" |
| Swing In Gap DIA | 36" | 46" | 72" | 72" | 76" | 76" |
| Spindle Hollow | 3" | 3.5/8" | 4.1/8" | 4.1/8" | 4.1/8" | 4.1/8" |
| Spindle Speed- Numbers | 6 | 6 | 6 | 6 | 6 | 6 |
| Leadscrew Pitch | 2/4 TPI | 2/4 TPI | 2/4 TPI | 2/4 TPI | 2/4 TPI | 2/4 TPI |
| Included Accessories: | Extra / Optional Accessories | |||||
| Dog Chuck Plate | Dog Chuck | True Chuck | ||||
| 4 Way Tool Post | SIEMENS/LT Electric Panel | Rapid Motorized Saddle | ||||
| Steady Rest | Main Motor | Coolant Pump With Tank | ||||
| Follow Rest | Taper Turning Attachment | Machine Light | ||||
| Dead Center | Splash Guard | Foot Operated Brake | ||||
| Allen Keys | Tool Post Grinding Attachment | Key Way Cutting Attachment | ||||
| Spanners | Turcite Lining Fitting | Digital ReadOuts - DRO | ||||
| Oil Can | Flame Hardened Bed | Rear Tool Post | ||||
