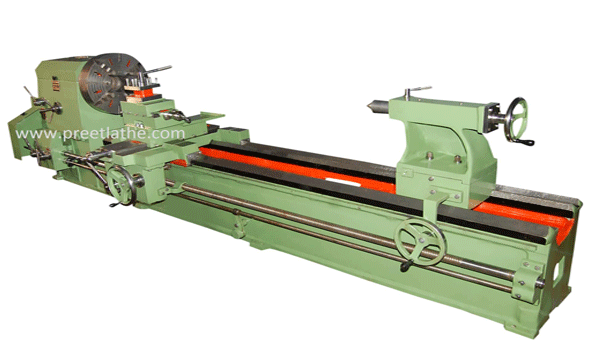

Conventional Lathe Machine
Preet Lathe™ has indulged in craftsmanship of Conventional Lathe Machine in Batala, since 1984 under the name of Preet Machine Tools derived from forefather Victor Industries, Batala. Lathe Machine crafted promises distinct performance, easy operation and high production. For constructive engineering, we use materials which are selected ones. These machines are manufactured strictly on quality basis to give long trouble free service, thus guarantee a precision and economic working and cuts cost ultimately.
Preet Lathe™ Udyog with 30 plus years‘ experience is well-regarded Belt Driven Lathe or Cone Pulley Lathe Machine Manufacturer, Supplier & Exporter of thorough Collection. The building of the Machine Series takes place by using Standard Grade Cast Iron & Steel that is obtained from the well-known vendors of the market.
| Specifications | HEAVY DUTY All GEARED LATHE Machine | |||||
| Description | A | B | C | D | E | F |
| Bed Length | 6' | 8' | 12' | 16' | 20' | 24' |
| Center Height | 12" | 16" | 24" | 24" | 26" | 26" |
| Admit Between Centers | 38" | 50" | 70" | 120" | 165" | 213" |
| Swing Over Bed DIA | 24" | 31" | 47" | 47" | 51" | 51" |
| Swing In Gap DIA | 36" | 46" | 72" | 72" | 76" | 76" |
| Spindle Hollow | 3" | 3.5/8" | 4.1/8" | 4.1/8" | 4.1/8" | 4.1/8" |
| Leadscrew Pitch | 2/4 TPI | 2/4 TPI | 2/4 TPI | 2/4 TPI | 2/4 TPI | 2/4 TPI |
| Included Accessories: | Extra / Optional Accessories | |||||
| Dog Chuck Plate | Dog Chuck | True Chuck | ||||
| 3 Way Tool Post | SIEMENS/LT Electric Panel | Rapid Motorized Saddle | ||||
| Steady Rest | Main Motor | Coolant Pump With Tank | ||||
| Follow Rest | Taper Turning Attachment | Machine Light | ||||
| Dead Center | Splash Guard | Foot Operated Brake | ||||
| Allen Keys | Tool Post Grinding Attachment | Key Way Cutting Attachment | ||||
| Spanners | Turcite Lining Fitting | Digital ReadOuts - DRO | ||||
| Oil Can | Flame Hardened Bed | Rear Tool Post | ||||
